Product Specification

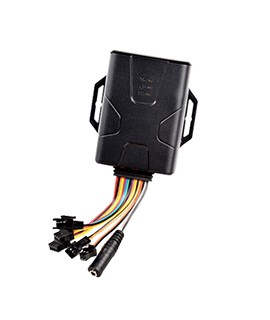

GT800 Vehicle GPS Tracker is a high-end multifunctional vehicle GPS tracker with solid performance for reasonable price. In addition to GPS and AGPS tracking, it supports door status detection, two-way communication as well as SOS call. This dust and waterproof tracker allows you to keep an eye on the vehicle anytime.
Product Features
· GPS + LBS tracking
Allow the location to be pinpointed in real time or periodically
· IP66 dust and water proof
Water-resistant case to ensure stable operation in tough environment
· 50000 pieces of data storage
Memorize a large amount of GPS data for history review
· Door status detection
Get instant alert when your car's door is opened unexpectedly
· Remote cut-off (petrol/power)
Compel the vehicle to stop by breaking off the fuel connection
· Two-way communication
With MIC and speaker connected, it's easy to realize voice-monitor or two-way audio
· Multiple I/O
Monitor and control external application via input/outputs
· Multiple alarms
Instant alerts for SOS, overspeed, low battery, vibration, etc
GSM Specification | |
GSM frequency | 850/900/1800/1900 MHz |
GPRS | Class 12, TCP/IP |
Memory | 64Mb |
Phase error | RMSPE<5,PPE<20 |
Max output | GSM850/GSM900:33±3dBm |
GSM1800/GSM1900:30±3Bm | |
Max frequency error | ±0.1ppm |
GPS Specification | |
GPS chipset | MTK high sensitivity chip |
Frequency | L1,1575.42MHz C/A code |
GPS channel | 66 |
Location accuracy | <10 meters |
Tracking sensitivity | -162dBm |
Acquisition sensitivity | -148dBm |
TTFF (open sky) | Avg. hot start≤1sec |
Avg. cold start≤32sec | |
Functional & Package | |
Voice monitor range | ≤5 meters |
Battery | 800mAh/3.7V Li-Polymer battery |
Working voltage/current | 9-36VDC/45mA(12VDC), 28mA(24VDC) |
Operating temperature | -20℃~ 70℃ |
Dimension | 93.0(L)*76.0(W)*18.0(H)mm |
Weight | 91.7g |
Accessories | Power cable, SOS cable, Microphone, Replay(4pin),2*Relay(5pin), Speaker, I&O cable |
